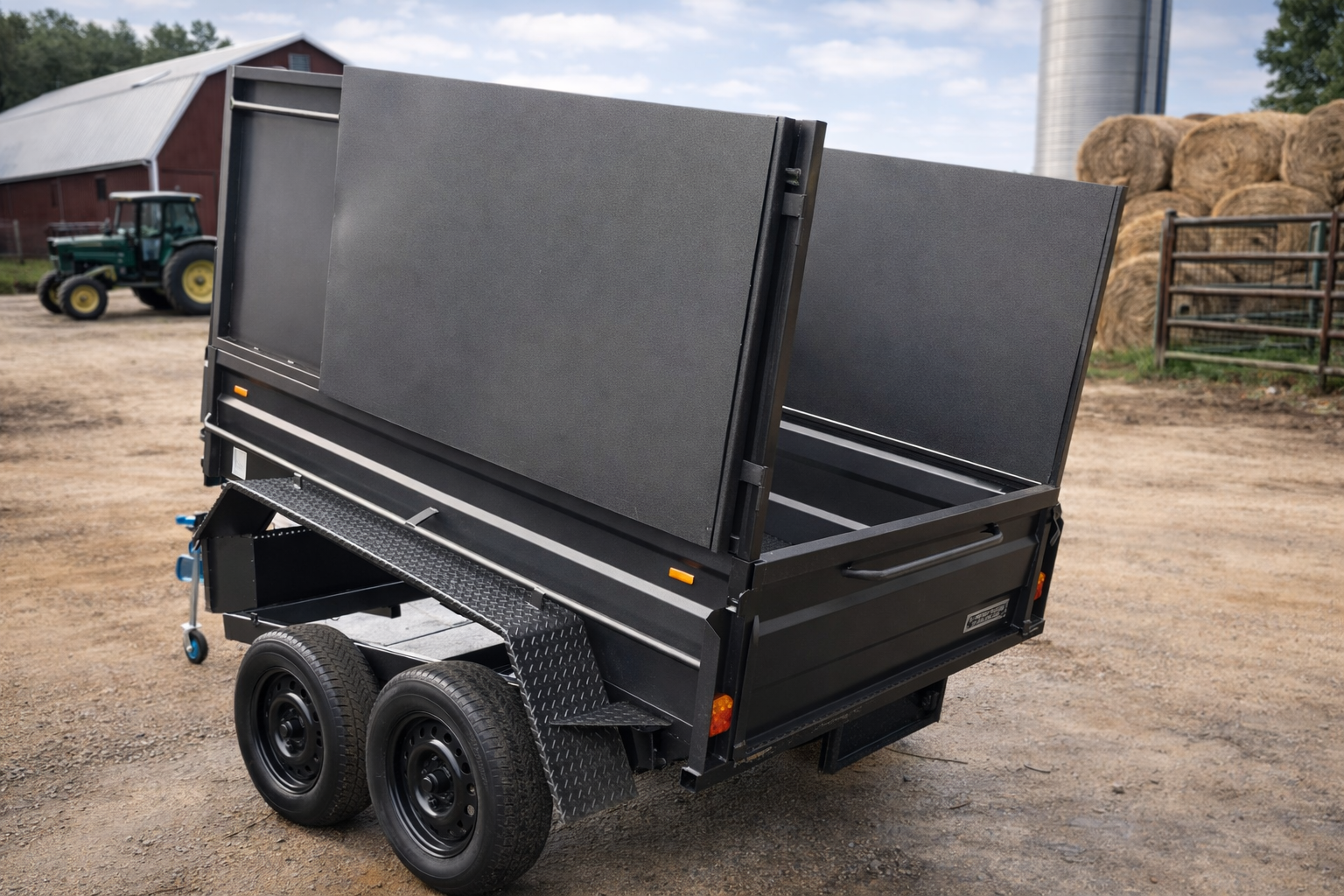

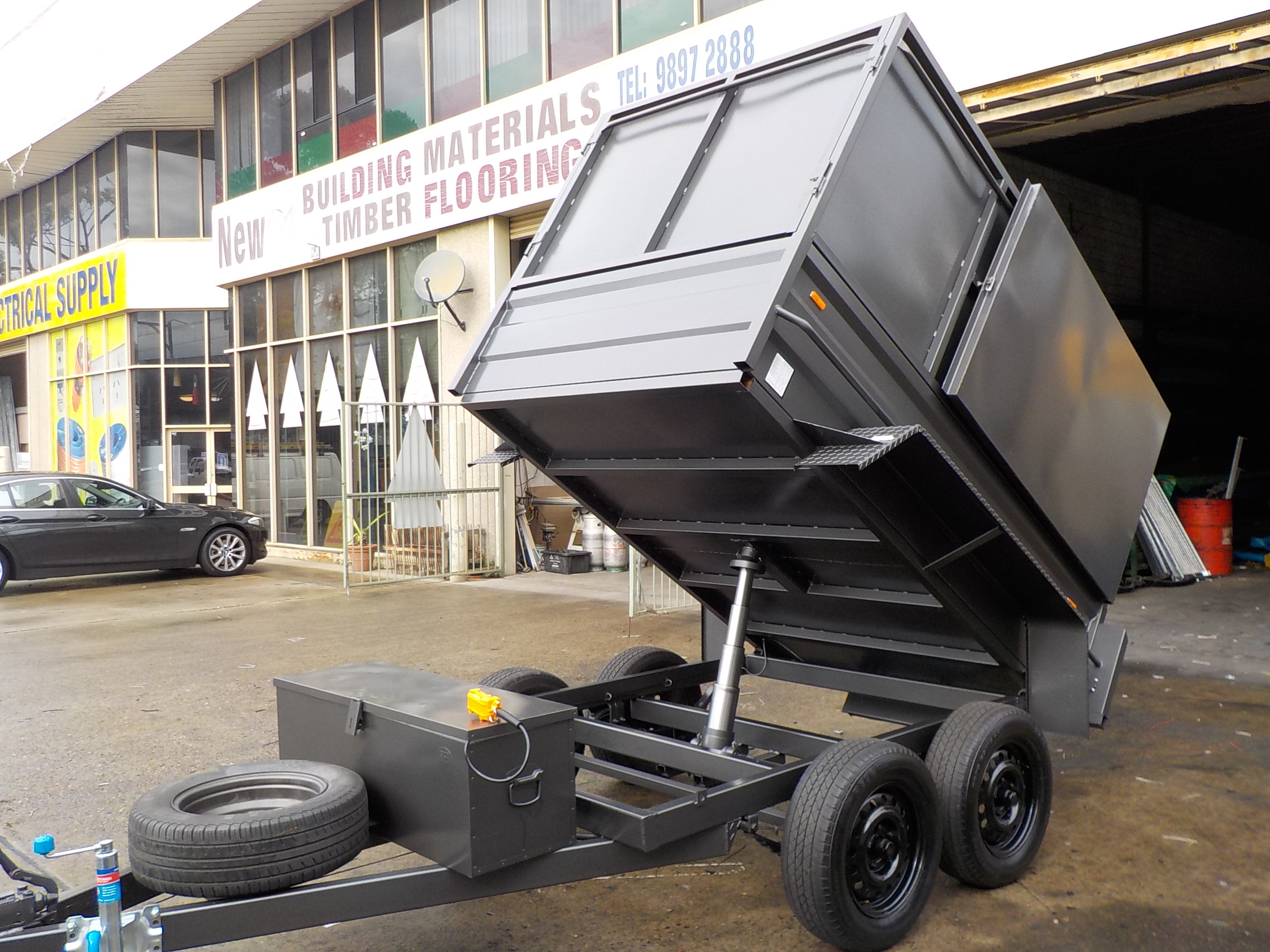

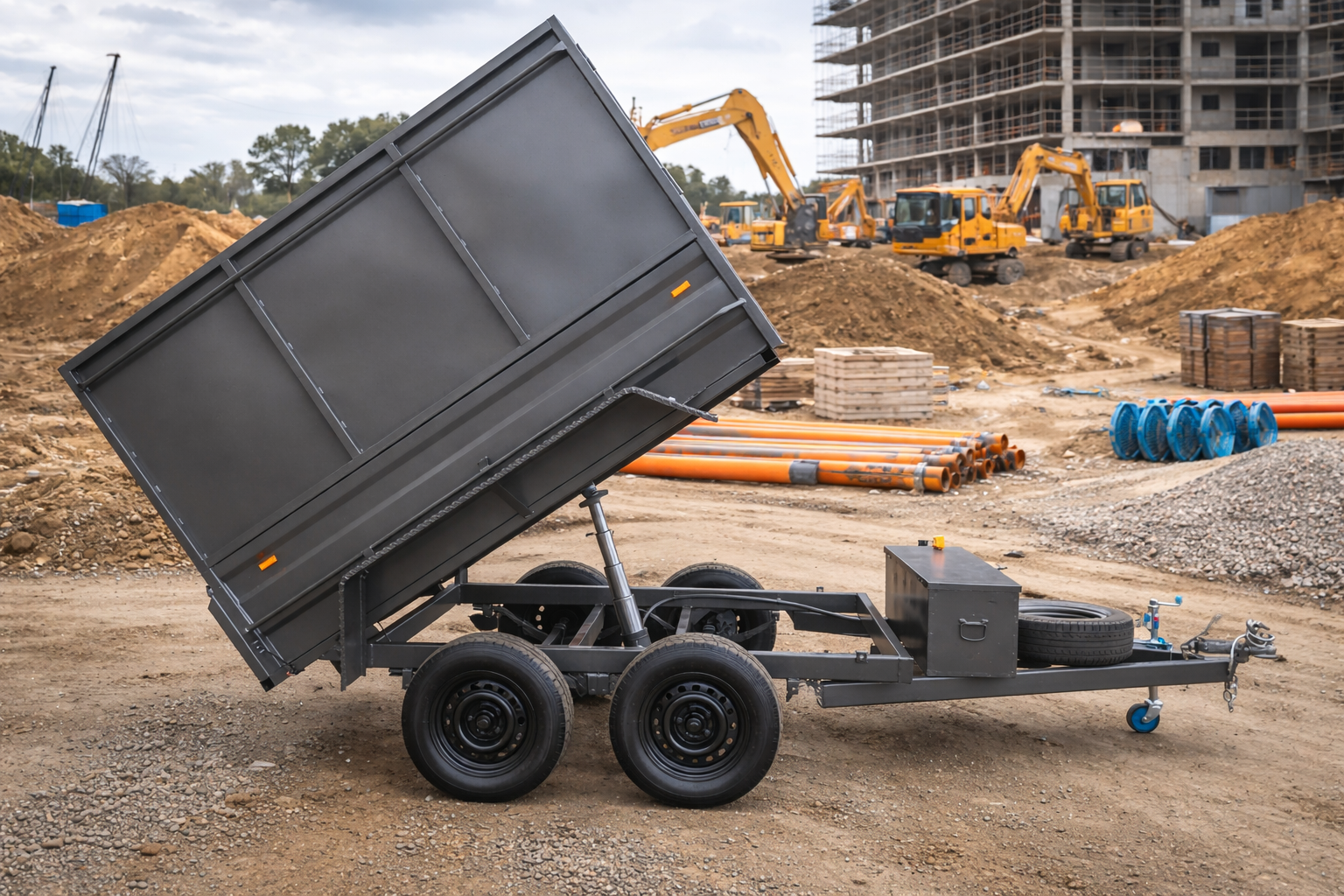

8X5 HYDRAULIC TIPPER TRAILER 3500GVM ELECTRIC BRAKES

Description

Product: 8 x 5 Hydraulic Tipper Trailer
ATM: 3500kg (3.5 Ton GVM)
Configuration: Tandem Axle

Body and Structure

• Heavy duty fully welded steel construction
• Hydraulic tipping system
• Approx. 1800 mm high solid sides
• Smooth sheet steel sides (1.6 mm thick)
• Reinforced frame and side supports
• Checker plate floor

Optional Side Upgrade

• Checker plate sides (2.1 mm thick) – additional cost

Rear and Access

• 2 x solid swing barn doors with locks
• Drop-down tailgate with locking system
• Multi-function rear access (loading and tipping)

Chassis and Drawbar

• Heavy duty chassis with reinforced subframe
• Strong A-frame drawbar
• Built for heavy-duty commercial use

Suspension and Axles

• Tandem axle configuration
• Heavy duty rocker roller suspension

Braking System

• 4 wheel electric brakes
• Breakaway system (ADR compliant)
• Wiring ready for in-car brake controller

Wheels and Tyres

• Heavy duty rims and tyres
• Commercial grade load rating

Lighting and Electrical

• Full LED lighting system
• ADR compliant tail lights, indicators and brake lights
• Number plate light
• 7 pin flat plug

Coupling and Safety

• Heavy duty 50 mm coupling
• Safety chains (ADR compliant)
• Heavy duty swing-up jockey wheel

Finish

• Painted steel in dark charcoal hammertone
• Corrosion protection applied

Additional Options (Extra Cost)

• Aluminium toolbox
• Battery upgrade for hydraulic system
• Spare wheel and mount
• Ladder racks or cage
• Checker plate side upgrade

Price
$9,500 + Registration – Payment option available

Notes

• Built for heavy-duty tipping and transport
• Suitable for commercial and construction use
• All additional features and upgrades charged separately
